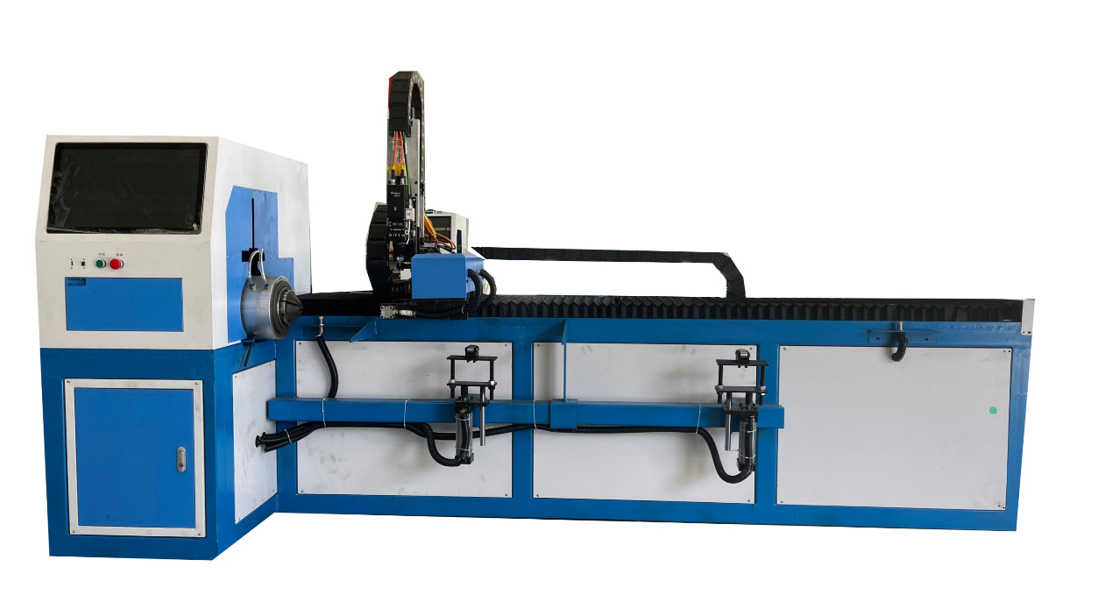

Servo Single Chuck Laser Cutting Machine
Equipment Parameters
Name | Value&Description |
Laser Source Power | 2000w |
Cutting Head Power | 2000w |
Front&Rear Chuck Maximum Working Diameter | 80mm |
Pipe Processing Diameter | 10-75mm |
Applicable Materials | Carbon steel, stainless steel, aluminum, aluminum alloy,galvanized steel |
Material Pipe Thickness | 2000w: 1-3mm |
Material Pipe Loading Length | 6m |

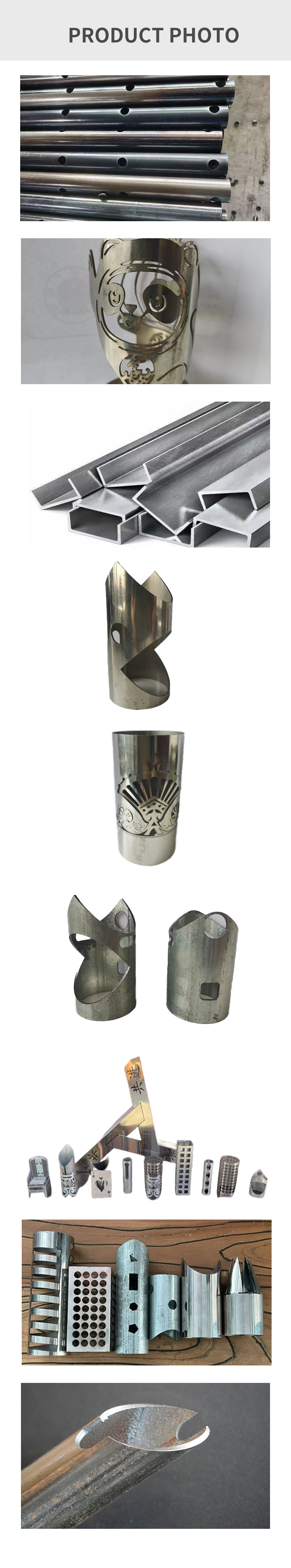

Machine Processing | Drilling holes, any shape cutting, length cutting |
Power Supply | 380V 50/60Hz |
Specification | 3700*1200*1500mm |
| Laser Wavelength | 1070nm |
Machine Repeat Positioning Accuracy | ±0.1mm |
Power Stability | ≤ ±1% |
Beam Quality BPP | <0.373mrad |
Minimum Line Width | ≤0.12mm |
| Laser Cooling | Water-cooling |
