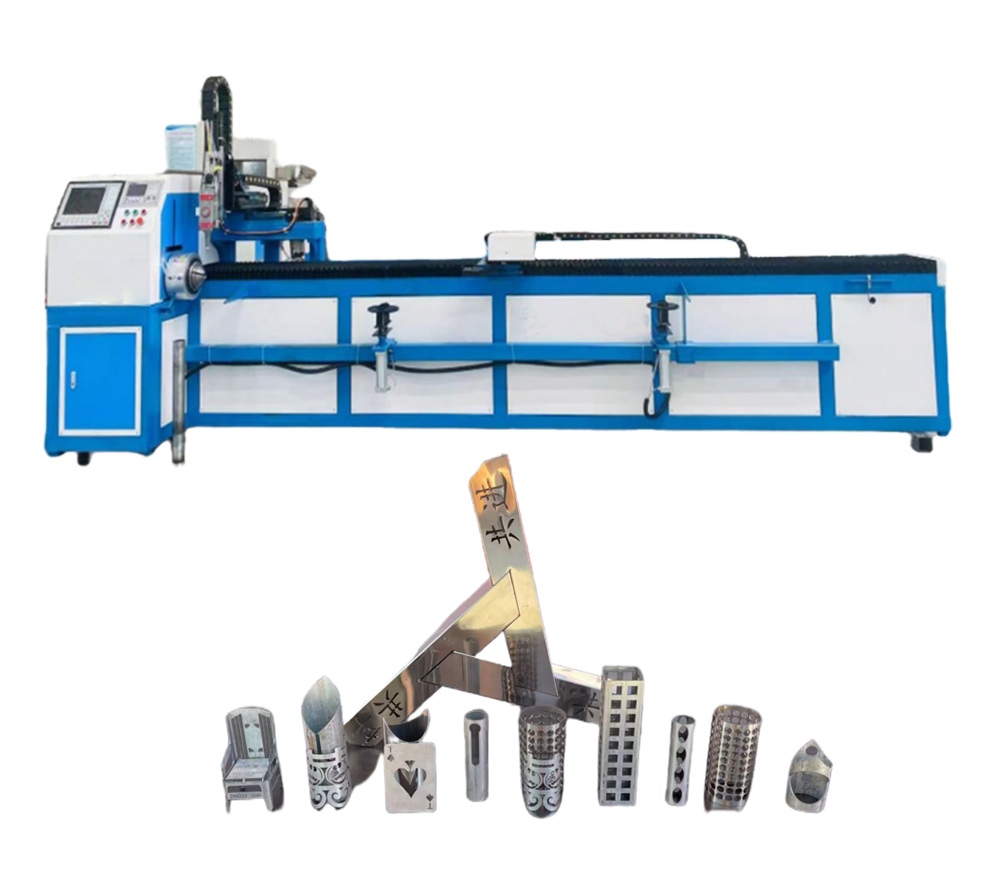

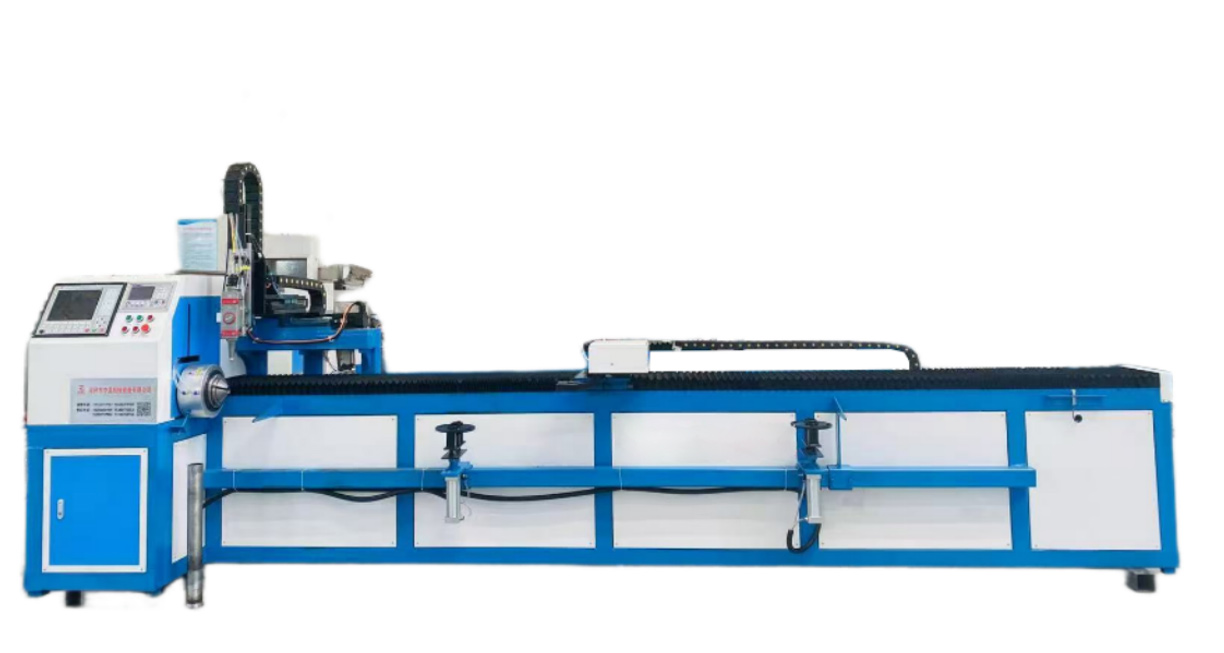

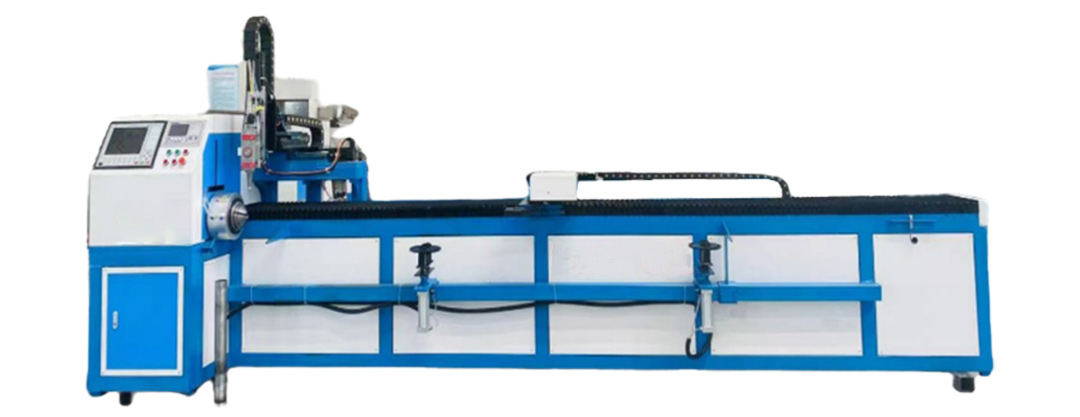

Servo Single Chuck Laser Pipe Cutting Machine
Equipment parameters
Name | Value&Description |
Laser Source Power | 2000w/3000w |
Cutting head Power | 2000w/3000w |
Front&Rear Chuck Maximum Working Diameter | 80mm |
Pipe Processing Diameter | 10-80mm |
Applicable Materials | Carbon steel, stainless steel, aluminum, aluminum alloy,galvanized steel |
Material Pipe thickness | 2000w: 1-3mm 3000w: 3-5mm |
Material Pipe Loading Length | 6m |
Machine Processing | length cutting |
Power Supply | 380V 50/60Hz |
Specification | 3700*1200*1500mm |
| Laser wavelength | 1070nm |
Machine repeat positioning accuracy | ±0.1mm |
Power stability | ≤ ±1% |
Beam quality BPP | <0.373mrad |
Minimum Line Width | ≤0.12mm |
| Laser Cooling | Water-cooling |
Table axial positioning accuracy | ≤ ±0.05mm/n |
