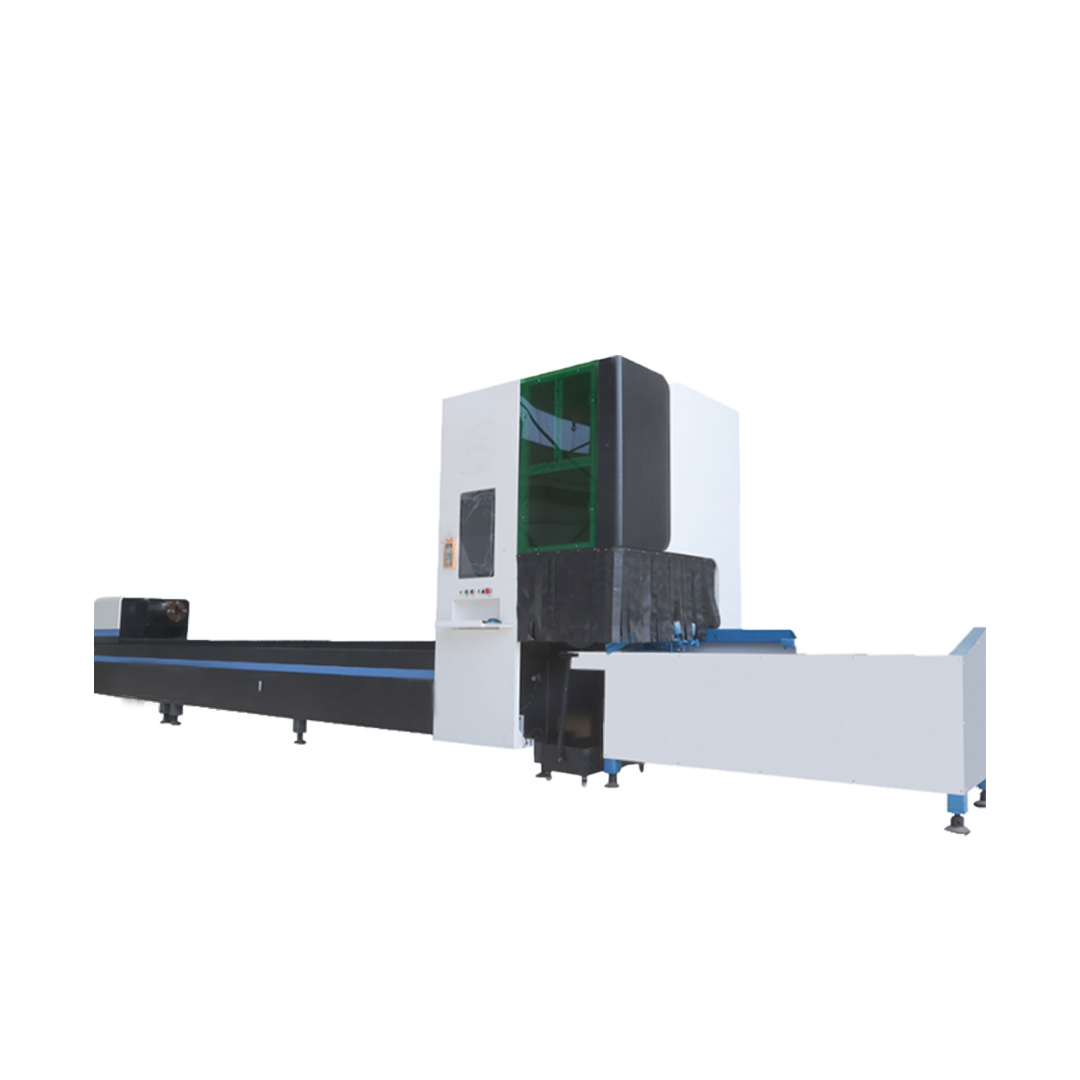

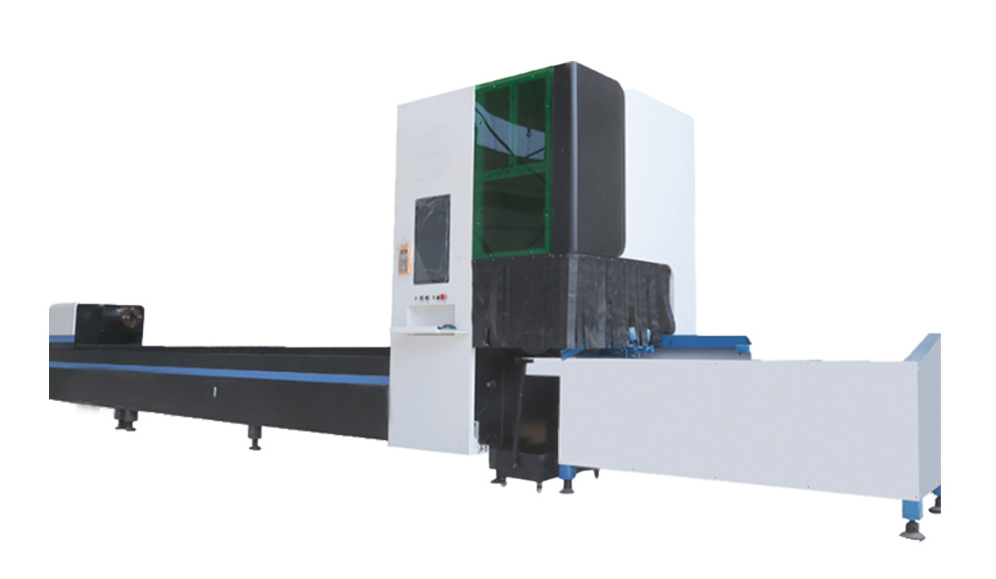

Servo Double Chuck Laser Pipe Cutting Machine
Equipment Parameters
Name | Value&Description |
Laser Source Power | 3000w 6000w |
Cutting Head Power | 3000w 6000w |
Front&Rear Chuck Maximum Working Diameter | 220mm |
Pipe Processing Diameter | 10-220mm |
Applicable Materials | Carbon steel, stainless steel, aluminum, aluminum alloy,galvanized steel |
Material Pipe Thickness | 3000w: 3-5mm 6000w: 5-10mm |
Material Pipe Feeding Length | 6m |
Suitable Material | square pipe, round pipe, rectangulai pipe, hexagonal pipe and other kinds of pipe and channel steel, Angle iron, I-steel, etc. |
Machine Processing | Drilling holes, arc cutting, any shape cutting, length cutting |
Axis Design Number | 5 |
Power Supply | 380V 50/60Hz |
Laser Wavelength | 1070nm |
Machine Repeat Positioning Accuracy | ±0.1mm |
Power Stability | ≤ ±1% |
Beam Quality BPP | <0.373mrad |
| Minimum Line Width | ≤0.12mm |
| Laser Cooling | Water-cooling |

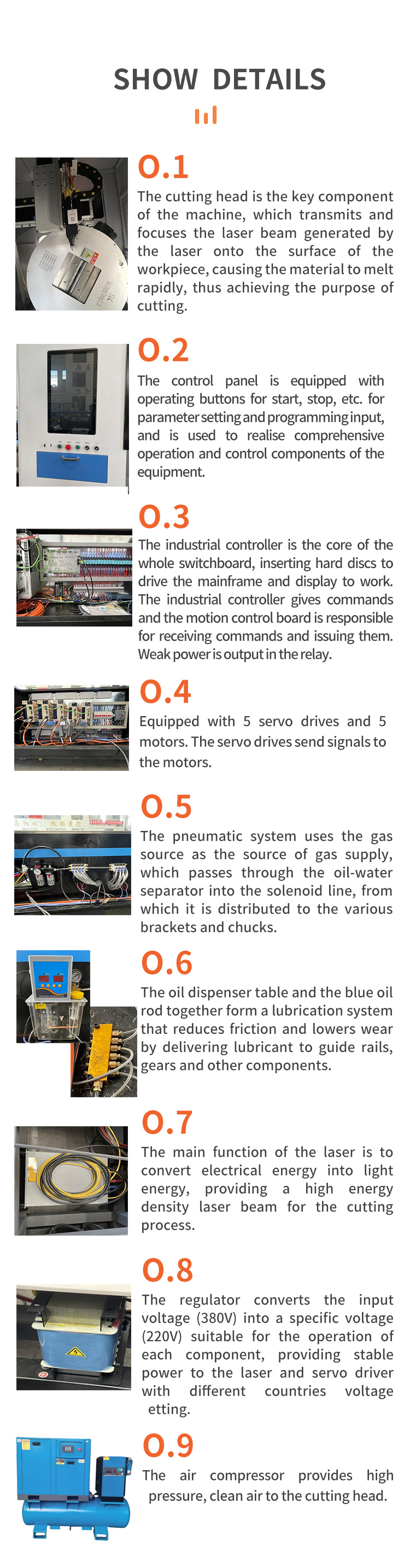

![ZHYL60220A001[].jpg](http://www.hdcqtech.com/upload/editor/20250902/17567803151829925.jpg)
